| モデル番号: | YW-16164G3 |
| MOQ: | 100 |
| 価格: | $4 |

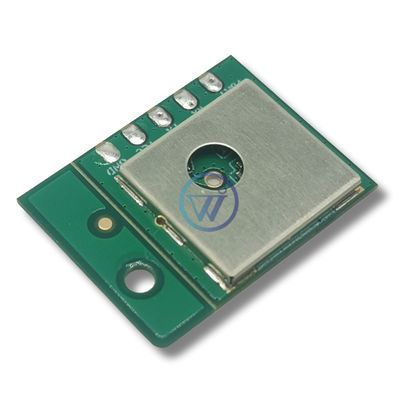

High-precision L1+L5 band GNSS module delivering centimeter-level positioning accuracy for professional applications.
| Parameter | Value |
|---|---|
| Part Number | YW-16164G3 |
| Chipset | Configurable per order |
| Frequency Bands | Dual-frequency L1+L5 (configurable) |
| Positioning Accuracy | Customizable to centimeter-level |
| Maximum Velocity | 515 m/s |
| Velocity Accuracy | 0.1m/s (unaided), 0.05m/s (DGPS) |
| Time to First Fix (TTFF) | Hot start: 1s, Warm start: 28s, Cold start: 30s |
| Sensitivity | Tracking: -162 dBm, Acquisition: -160 dBm, Cold Start: -147 dBm |
| Default Baud Rate | 9600 bps |
| Navigation Update Rate | 1Hz (default), up to 10Hz |
| Timing Accuracy | 25 ns RMS |
| Pin No. | Pin Name | I/O | Description | Remark |
|---|---|---|---|---|
| 1 | GND | O | Power output ground | |
| 2 | VCC | I | Main power supply | 3V~5V range |
| 3 | TX | O | Data output | |
| 4 | VBAT | P | Ground |
|
|
