| モデル番号: | YW-35254G3 |
| MOQ: | 100 |
| 価格: | $3-4 |

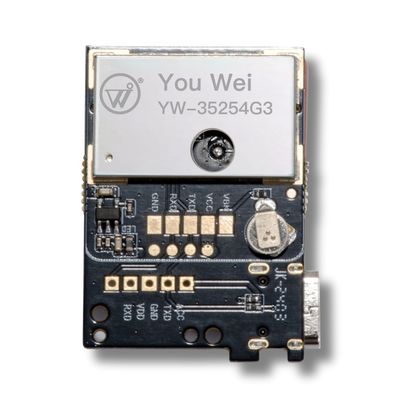

High-performance GNSS GPS locating module with quick positioning capabilities in cold start conditions, featuring fast TTFF (Time-To-First-Fix) performance even in challenging environments.
| Parameter | Specification |
|---|---|
| Item No. | YW-35254G3 |
| Brand | Youwei |
| Frequency | GPS L1 C/A, SBAS L1 C/A, QZSS L1 C/A, GLONASS L1OF, BeiDou B1, Galileo E1B/C² (Customizable) |
| Channels | 32 to 99 (As per order) |
| Positioning Accuracy | 2 meters to 5 meters |
| Velocity | 515 m/s |
| Velocity Accuracy | Without aid: 0.1m/s, DGPS: 0.05m/s |
| TTFF | Hot start: 1s, Warm start: 28s, Cold start: 30s |
| Sensitivity | Tracking: -162 dBm, Acquisition: -160 dBm, Cold Start: -147dBm |
| Baud Rate | 9600 bps (default) |
| Navigation Update Rate | 1Hz (default), maximum 10Hz |
| Timing Accuracy | 25 ns RMS |
| Interface Type | UART, I2C, SPI, USB |
| Data Output Format | NMEA 0183 |
| Power Supply | 3.3V ~ 5V |
| Operating Current | Typical 25mA |
| Temperature Range | -40°C to 85°C |
| Antenna Type | Patch ceramic antenna |
| Product Size | 35x25x4mm |
| Package Type | SMD |
